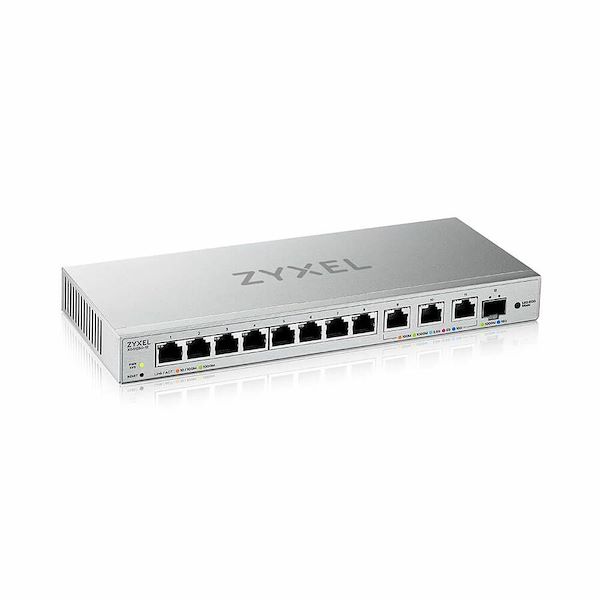

ZYXEL 12-Port Web-Managed Multi-Gigabit Switch Includes 3-Port 10G and 1-Port 10G SFP+

Part #: 1-2066164

ZYXEL 12-Port Web-Managed Multi-Gigabit Switch Includes 3-Port 10G and 1-Port 10G SFP+

Part #: 1-2066164 MFG Part #: XGS1250-12 UPC #: 760559127305
$190.25
SPECIAL ORDER

0 Available

(as of May 8, 2026 2:27 AM) Refresh Inventory
FREE SHIPPING

Free shipping on most items when you spend $100

AUTHORIZED DEALER
AUTHORIZED DEALER
AUTHORIZED DEALER

AUTHORIZED DEALER

Protect your investment ()

About the ZYXEL 12-Port Web-Managed Multi-Gigabit Switch Includes 3-Port 10G and 1-Port 10G SFP+

Upgrade Speeds Without Hesitation

Double the 10G Capability!

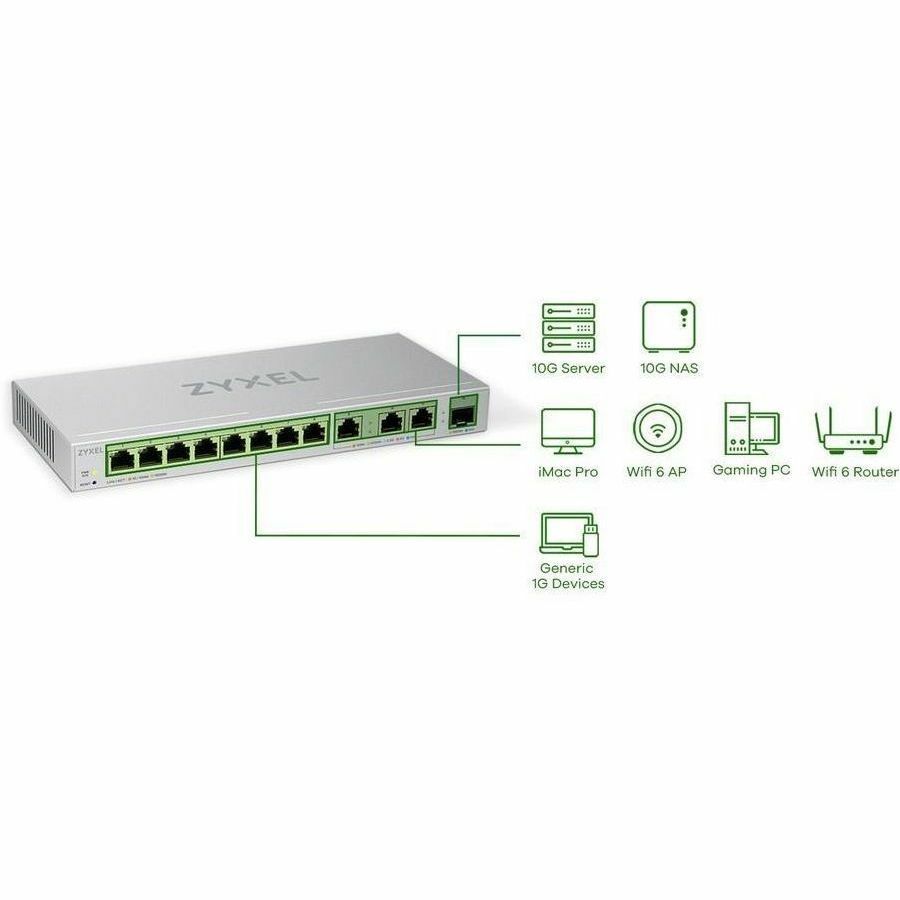

XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Why Multi-Gigabit?

Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!

The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work

The built-in smart fan is designed to automatically adjust speeds based on the device's temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses.

Easy Web Management

The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It's the most ideal solution to simplify networks for home and small office users.

Upgrade Speeds Without Hesitation

Double the 10G Capability!

XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Why Multi-Gigabit?

Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!

The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work

The built-in smart fan is designed to automatically adjust speeds based on the device's temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses.

Easy Web Management

The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It's the most ideal solution to simplify networks for home and small office users.

Technical Specifications of the ZYXEL 12-Port Web-Managed Multi-Gigabit Switch Includes 3-Port 10G and 1-Port 10G SFP+

General Information


Manufacturer ZYXEL Communications Corp.
Manufacturer Part Number XGS1250-12
Manufacturer Website Address http://www.us.zyxel.com
Brand Name ZYXEL
Product Name 12-Port Web-Managed Multi-Gigabit Switch Includes 3-Port 10G and 1-Port 10G SFP+
Product Type Ethernet Switch

Interfaces/Ports


Total Number of Network Ports 11
Modular Yes
Network (RJ-45) Yes
Port / Expansion Slot Details 1 x 10 Gigabit Ethernet Expansion Slot3 x 10 Gigabit Ethernet Network8 x Gigabit Ethernet Network

Media & Performance


Media Type Supported Optical FiberTwisted Pair
Ethernet Technology 10 Gigabit EthernetGigabit Ethernet
Network Technology 10/100/1000Base-T10GBase-T10GBase-X

I/O Expansions


Expansion Slot Type SFP+
Total Number of Expansion Slots 1.0
Number of SFP+ Slots 1

Network & Communication


Layer Supported 2
Networking Standards IEEE 802.3IEEE 802.3aeIEEE 802.3anIEEE 802.1pIEEE 802.3abIEEE 802.3xIEEE 802.3uIEEE 802.3az

Management & Protocols


Manageable Yes

Power Description


Frequency 60 Hz50 Hz
Power Source Power Adapter

Physical Characteristics


Height 1.1"
Width 9.8"
Depth 4.1"
Weight (Approximate) 1.73 lb

Miscellaneous


Package Contents
  • 12-Port Web-Managed Multi-Gigabit Switch Includes 3-Port 10G and 1-Port 10G SFP+
  • Power Adapter
  • Quick Start Guide
  • Safety Warning and DoC
Country of Origin China
