Vertiv Geist Monitored RPDU with Next-Generation IMD - 0U Rack| 30A| 120V/208V WYE| 36 Combination C13/C19 outlets| L21-30P| 8.6kW| VP4N30AN

Part #: 1-2676906

Vertiv Geist Monitored RPDU with Next-Generation IMD - 0U Rack| 30A| 120V/208V WYE| 36 Combination C13/C19 outlets| L21-30P| 8.6kW| VP4N30AN

Part #: 1-2676906 MFG Part #: VP4N30AN UPC #: 767041044652
$1,909.00 $1,301.59
Save $607.41
OUT OF STOCK

0 Available

(as of Jun 17, 2026 2:27 AM) Refresh Inventory
FREE SHIPPING

Free shipping on most items when you spend $100

AUTHORIZED DEALER
AUTHORIZED DEALER
AUTHORIZED DEALER

AUTHORIZED DEALER

Protect your investment ()

About the Vertiv Geist Geist Upgradeable

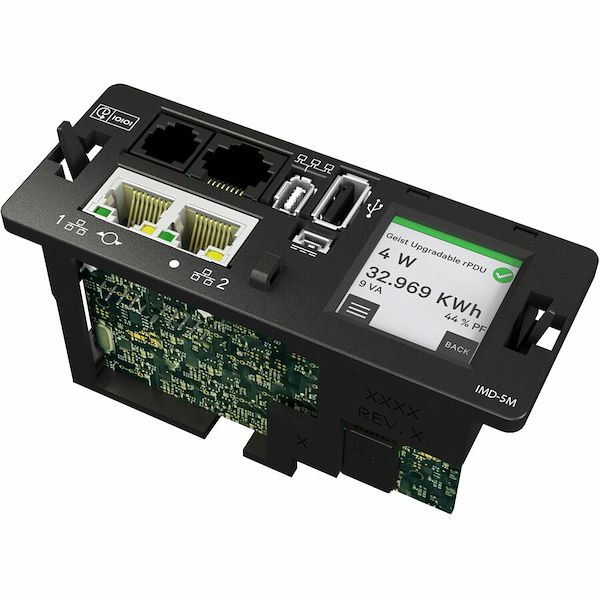

The Vertiv Geist Monitored Rack PDU VP4N30AN is a 30A, 120V/208V WYE, 3-phase upgradeable rack power distribution unit with input power monitoring. It has 36 Combination C13/C19 outlets, and an L21-30P plug providing 8.6kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

More from the Manufacturer

Technical Specifications of the Vertiv Geist Geist Upgradeable

General Information


Manufacturer Vertiv
Manufacturer Part Number VP4N30AN
Manufacturer Website Address http://www.vertiv.com/
Brand Name Vertiv Geist
Product Line Geist Upgradeable
Product Name Monitored VP4N30AN PDU
Product Type PDU

Technical Information


PDU Type Monitored
Phase Three Phase
Plug / Connector Type NEMA L21-30P
Plug / Connector Detail 1 x NEMA L21-30P
Receptacle Type Combination C13/C19
Receptacle Detail 36 x Combination C13/C19
Features LCD DisplayTouch Screen Display

Power Description


Input Voltage 120 V AC230 V AC
Input Voltage Range 100 V AC - 120 V AC200 V AC - 240 V AC
Output Voltage 120 V AC240 V AC
Output Voltage Range 100 V AC - 120 V AC200 V AC - 240 V AC
Power Rating (Watt) 8600 W
Input Current 30 A

Management


Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog
  • TACACS+
Remote Outlet Switching No

Interfaces/Ports


Serial Port Yes
Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Network (RJ-45) Yes
USB Yes

Physical Characteristics


Mounting Orientation Vertical
Mount Type Rack-mountable
Form Factor Rack
Rack Height 0U
Cord Length 10 ft
Height 70"
Width 2"
Depth 2"
Length 2"
Weight (Approximate) 17 lb

Miscellaneous


Certifications & Standards
  • UL
  • c-UL Listed 62368
Green Compliant Yes
Country of Origin United States
TAA Compliant Yes
Environmental Compliance China Restriction of Hazardous Substances (China RoHS)Restriction of Hazardous Substances (RoHS)

Warranty


Limited Warranty 5 Year
Additional Warranty Information 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
