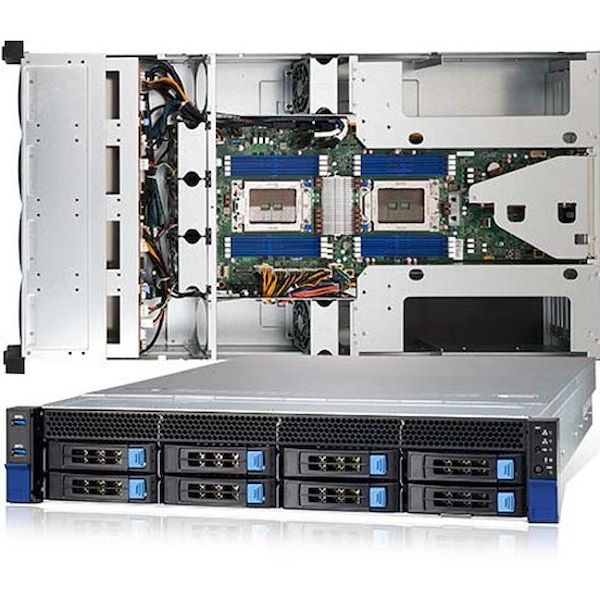

Tyan Transport HX TN83-B8251 Barebone System - 2U Rack-mountable - Socket SP3 - 2 x Processor Support

Part #: 1-1939055

Tyan Transport HX TN83-B8251 Barebone System - 2U Rack-mountable - Socket SP3 - 2 x Processor Support

Part #: 1-1939055 MFG Part #: B8251T83E8HR-2T-N UPC #: 635872048692
$4,305.00 $3,259.88
Save $1,045.12
SPECIAL ORDER

0 Available

(as of Feb 14, 2026 2:17 AM) Refresh Inventory
FREE SHIPPING

Free shipping on most items when you spend $100

AUTHORIZED DEALER
AUTHORIZED DEALER
AUTHORIZED DEALER

AUTHORIZED DEALER

Protect your investment ()

About the Tyan Transport HX TN83-B8251

4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - Serial ATA/600, 12Gb/s SAS - ASPEED AST2500 32 MB Integrated - 8 x Total Bays - 8 3.5" Bay(s) - 6 x Total Expansion Slots - Processor Support (EPYC) - 10 Gigabit Ethernet - 2 x 2200 W

  • Dual-Socket AMD EPYC™ 7002 (Rome)
  • 16 DIMM slots
  • PCIe Gen 4.0 support
  • Support up to 4DW / 10 SW GPU cards
  • 8 3.5" SATA/NVMe U.2 screwlessdrive bays

Technical Specifications of the Tyan Transport HX TN83-B8251

General Information


Manufacturer Tyan Computer Corp
Manufacturer Part Number B8251T83E8HR-2T-N
Manufacturer Website Address http://www.tyan.com
Brand Name Mitac
Product Line Transport HX
Product Model TN83-B8251
Product Name Transport HX TN83-B8251 2U 4-GPU HPC Server
Packaged Quantity 1
Product Type Server Barebone System

Memory


Maximum Memory 4 TB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Total Number of Memory Slots 16

Processor


Number of Processors Supported 2
Processor Socket Socket SP3
Processor Supported EPYC
64-bit Processing Yes

Controllers


Controller Type Serial ATA/60012Gb/s SAS

Display & Graphics


Graphics Memory Capacity 32 MB

Network & Communication


Ethernet Technology 10 Gigabit Ethernet

I/O Expansions


Number of Total Expansion Bays 8
Number of 3.5" Bays 8
Total Number of Expansion Slots 6
Number of PCI Express x16 Slots 6

Interfaces/Ports


Total Number of USB Ports 5
Number of USB 3.1 Gen 1 Ports 5
Number of SATA Interfaces 8

Software


Operating System Supported Red Hat Enterprise Linux 8.0 x64Ubuntu Desktop 19.04 x64Red Hat Enterprise Linux 7.6 x64CentOS 7.7 x64SuSE Linux Enterprise Server 15 x64Red Hat Enterprise Linux 7.7 x64Windows Server 2016SuSE Linux Enterprise Server 12 x64Red Hat Enterprise Linux 8.1 x64Windows Server 2019

Power Description


Input Voltage 230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 2200 W

Operating System


Operating System Supported CentOS 7.7 x64Red Hat Enterprise Linux 7.6 x64Ubuntu Desktop 19.04 x64Red Hat Enterprise Linux 8.0 x64Windows Server 2019Red Hat Enterprise Linux 8.1 x64SuSE Linux Enterprise Server 12 x64Windows Server 2016Red Hat Enterprise Linux 7.7 x64SuSE Linux Enterprise Server 15 x64

Physical Characteristics


Form Factor Rack-mountable
Rack Height 2U
Height 3.4"
Width 17.3"
Depth 32.7"
Weight (Approximate) 44.80 lb

Miscellaneous


Package Contents
  • Transport HX TN83-B8251 2U 4-GPU HPC Server
  • 1 x Quick Installation Guide
Green Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty


Limited Warranty 3 Year
