StarTech.com 8-Port PCI Express RS232 Serial Adapter Card -PCIe to Serial DB9 Controller 16C1050 UART - Low Profile - 15kV ESD - Win/Linux

$215.24
$197.52 SAVE $17.72
12 availableas of 09/14/2026

Order within for shipment today

Should arrive by Wed, Sep 30 with free ground shipping

Compliance, certifications and origin

  • TAA compliant
  • EU RoHS
  • REACH
  • WEEE
  • RoHS
  • Origin: Taiwan
Rated excellent by our customers Read our reviews

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Protect this device

Plans are optional and can be left off. Your order is unchanged unless you add one.

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Overview

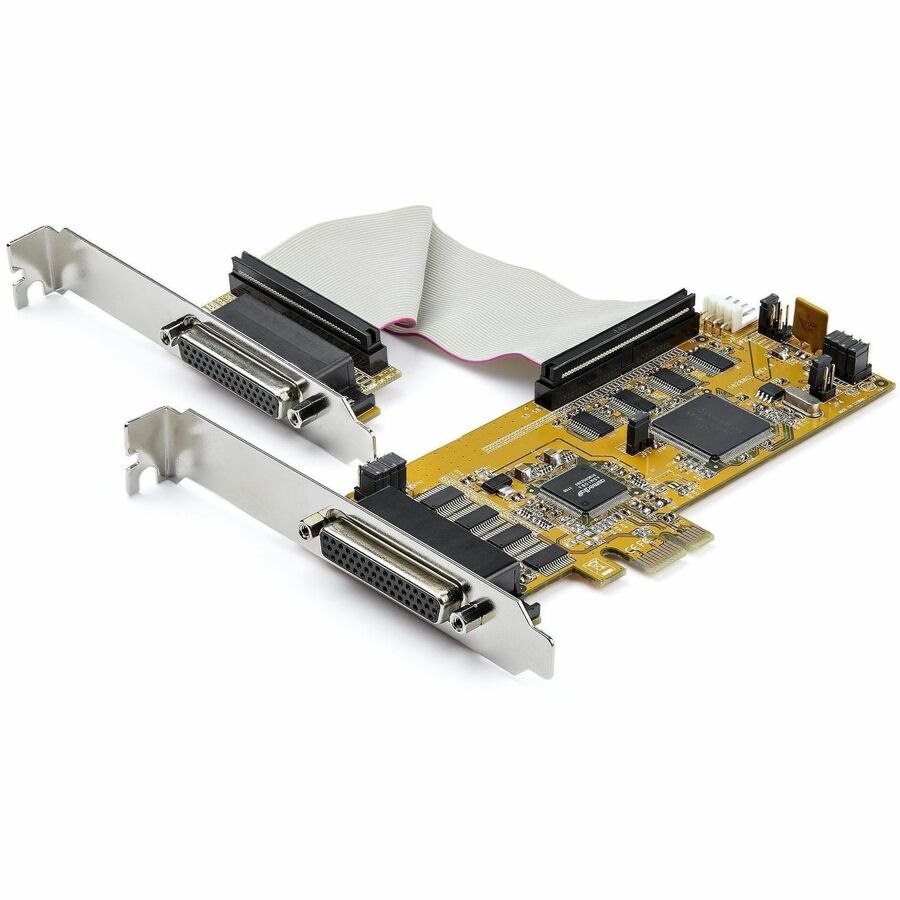

About the StarTech.com 8-Port PCI Express RS232 Serial Adapter Card -PCIe to Serial DB9 Controller 16C1050 UART - Low Profile - 15kV ESD - Win/Linux

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.

Versatile Use

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.

Windows Only

This PCI Express card is only compatible with Windows and Windows server. Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors. Versatile Use The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor. Windows Only This PCI Express card is only compatible with Windows and Windows server.

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.

Versatile Use

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.

Windows Only

This PCI Express card is only compatible with Windows and Windows server.

More from the manufacturer

Technical specifications

Technical Specifications of the StarTech.com 8-Port PCI Express RS232 Serial Adapter Card -PCIe to Serial DB9 Controller 16C1050 UART - Low Profile - 15kV ESD - Win/Linux

General Information

General Information specifications
Manufacturer StarTech.com
Manufacturer Part Number PEX8S1050LP
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 8-Port PCI Express Serial Card with 16C1050 UART
Packaged Quantity 1 Each
Product Type Multiport Serial Adapter

Technical Information

Technical Information specifications
Host Interface PCI Express x1
Maximum Data Transfer Rate 921.40 kbit/s
Platform Supported PCLinux

Interfaces/Ports

Interfaces/Ports specifications
Number of Serial Ports 8
Ports Expandability 8 x DB-9 - Serial, Via Cable

Physical Characteristics

Physical Characteristics specifications
Color Family Yellow
Product Color Yellow
Form Factor Plug-in Card
Height 2.4"
Width 0.9"
Weight (Approximate) 4.09 oz

Miscellaneous

Miscellaneous specifications
Package Contents
  • 8-Port PCI Express Serial Card with 16C1050 UART
  • 2 x DB44 to 4-Port SB9 Breakout Cables
  • 2 x Full Profile Brackets
  • 1 x Quick-Start Guide
Green Compliant Yes
Green Compliance Certificate / Authority EU RoHS
Country of Origin Taiwan
TAA Compliant Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS) 2
End of Life Manual Availability Yes
EU RoHS Declaration URL https://media.startech.com/cms/pdfs/pex8s1050lp_rohs.pdf
REACH Declaration URL https://media.startech.com/cms/pdfs/pex8s1050lp_rohs.pdf
REACH free of SVHC Yes
WEEE Statement https://media.startech.com/cms/pdfs/pex8s1050lp_weee.pdf

Warranty

Warranty specifications
Limited Warranty Lifetime
