Shuttle PC63J ATX12V & EPS12V Power Supply

Part #: 1-431019

Shuttle PC63J ATX12V & EPS12V Power Supply

Part #: 1-431019 MFG Part #: PC63J UPC #: 811686005445
$149.99 $126.77
Save $23.22
OUT OF STOCK

0 Available

(as of Jun 12, 2026 2:27 AM) Refresh Inventory
FREE SHIPPING

Free shipping on most items when you spend $100

AUTHORIZED DEALER
AUTHORIZED DEALER
AUTHORIZED DEALER

AUTHORIZED DEALER

Protect your investment ()

About the Shuttle PC63J

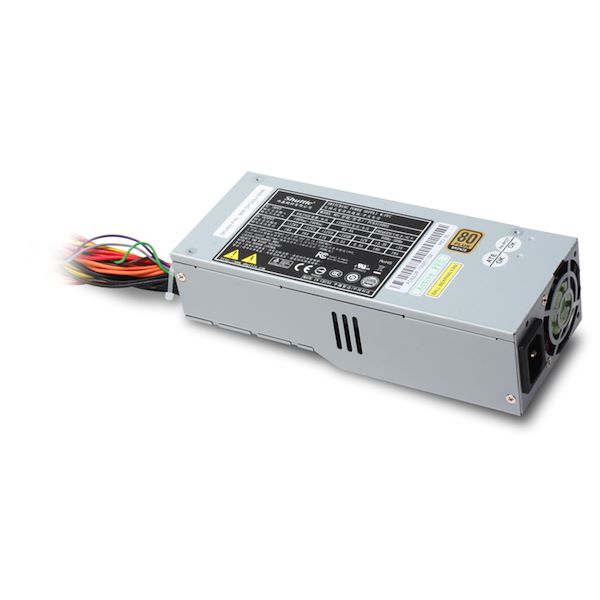

The Shuttle XPC Accessory PC63J is a new high-end power supply with a maximum output wattage of 500W suitable for XPCs with J-series case. With a low noise level of only 30dB, it is ideal for use in any noise-sensitive environments such as a library and offices. Thanks to its 80 PLUS Bronze certification for power-efficient devices, this power supply is also suitable for ENERGY STAR compliant systems. Benefit from less power consumption and less energy costs using PC63J.

The Shuttle XPC Accessory PC63J is a new high-end power supply with a maximum output wattage of 500W suitable for XPCs with J-series case. With a low noise level of only 30dB, it is ideal for use in any noise-sensitive environments such as a library and offices. Thanks to its 80 PLUS Bronze certification for power-efficient devices, this power supply is also suitable for ENERGY STAR compliant systems. Benefit from less power consumption and less energy costs using PC63J.

Technical Specifications of the Shuttle PC63J

General Information


Manufacturer Shuttle, Inc
Manufacturer Part Number PC63J
Manufacturer Website Address http://www.us.shuttle.com
Brand Name Shuttle
Product Model PC63J
Product Name PC63J ATX12V & EPS12V Power Supply
Product Type Power Supply

Technical Information


Specification Compliance ATX12V/EPS12V
Efficiency 85%
Power Factor Correction (PFC) Active
Number of Fans 1
Protection Type Short CircuitOver PowerOver CurrentOver TemperatureOver VoltageUnder Voltage

Reliability


MTBF 100000 Hour

Power Description


Number of +12V Rails 3
Input Voltage Type AC
Input Voltage 264 V AC
Output Voltage 3.3 V DC5 V DC12 V DC-12 V DC
Output Voltage Detail 3.3 V DC @ 18 A5 V DC @ 16 A12 V DC @ 16 A12 V DC @ 17 A5 V DC @ 2.5 A-12 V DC @ 300 mA
Output Current 18 A2.50 A300 mA17 A16 A

Interfaces/Ports


Receptacles 1 x ATX1 x ATX12V1 x SP42 x LP413

Physical Characteristics


Form Factor Internal
Height 2.1"
Width 3.2"
Depth 7.9"
Weight (Approximate) 2.43 lb

Miscellaneous


Compatibility
  • Shuttle SG41J1 Series XPCs
  • Shuttle SH55J2 Mini PC
  • Shuttle SX58J3 XPC
Country of Origin China
