Perle MCR1900-DAC - 19 Slot Chassis for Media Converter and Ethernet Extender Modules

Part #: 1-846822

Perle MCR1900-DAC - 19 Slot Chassis for Media Converter and Ethernet Extender Modules

Part #: 1-846822 MFG Part #: 05059954 UPC #: 734660599542
$2,196.00 $1,650.46
Save $545.54
OUT OF STOCK

0 Available

(as of Jul 17, 2026 2:02 AM) Refresh Inventory
FREE SHIPPING

Free shipping on most items when you spend $100

AUTHORIZED DEALER
AUTHORIZED DEALER
AUTHORIZED DEALER

AUTHORIZED DEALER

Protect your investment ()

About the Perle MCR1900-DAC

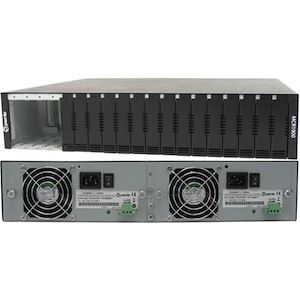

The Perle MCR1900 Media Converter Chassis is the most reliable high density modular chassis system available today. It is ideal for enterprise and campus environments where multiple points of copper and/or fiber integration are essential. An end-to-end copper to copper, copper to fiber, multimode to single mode or multimode to multimode solution can be achieved by pairing modules in this high density chassis with another Perle MCR1900 chassis standalone media converters, or standalone Ethernet extenders. Management of Media Converter Modules and chassis can be performed with the addition of a chassis management module. For a low to mid density solution, please check out the MCR200 Media Converter Chassis.The Perle MCR1900 Media Converter Chassis is the most reliable high density modular chassis system available today. It is ideal for enterprise and campus environments where multiple points of copper and/or fiber integration are essential. An end-to-end copper to copper, copper to fiber, multimode to single mode or multimode to multimode solution can be achieved by pairing modules in this high density chassis with another Perle MCR1900 chassis standalone media converters, or standalone Ethernet extenders. Management of Media Converter Modules and chassis can be performed with the addition of a chassis management module. For a low to mid density solution, please check out the MCR200 Media Converter Chassis.

Technical Specifications of the Perle MCR1900-DAC

General Information


Manufacturer Perle Systems, Inc
Manufacturer Part Number 05059954
Manufacturer Website Address http://www.perle.com
Brand Name Perle
Product Model MCR1900-DAC
Product Name MCR1900-DAC - 19 Slot Chassis for Media Converter and Ethernet Extender Modules
Product Type Media Converter Chassis

Physical Characteristics


Height 3.5"
Width 17.1"
Depth 14"
Weight (Approximate) 15.43 lb

Miscellaneous


Package Contents
  • MCR1900-DAC - 19 Slot Chassis for Media Converter and Ethernet Extender Modules
  • 15 x Empty Slot Cover Plates
  • 2U - 19" Rack Mounting Hardware
Additional Information All modules, management module and power supplies are hot-swappable
Certifications & Standards Emissions:
  • FCC Part 15 Class A, EN55022 Class A
  • CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
  • ICES-003, Issue 4, February 2004 (Canada)
  • EN55022:1998 + A1:2000 + A2:2003 Class A
  • EN61000-3-2 : 1995, Limits for Harmonic Current Emissions
  • EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker
Immunity:
  • EN55024:1998 + A1:2001 + A2:2003
  • EN61000-4-2: Electrostatic Discharge
  • EN61000-4-3: RF Electromagnetic Field Modulated
  • EN61000-4-4: Fast Transients
  • EN61000-4-5: Surge
  • EN61000-4-6: RF Continuous Conducted
  • EN61000-4-8: Power-Frequency Magnetic Field
  • EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety:
  • IEC 60950-1, First Edition (2001-10) and EN60950-1:2001, CB scheme
  • CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)
Other:
  • ECCN: 5A991A
  • HTSUS Number: 8517.62.0050
Green Compliant Yes
Country of Origin Taiwan
Environmental Compliance Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty


Limited Warranty Lifetime
