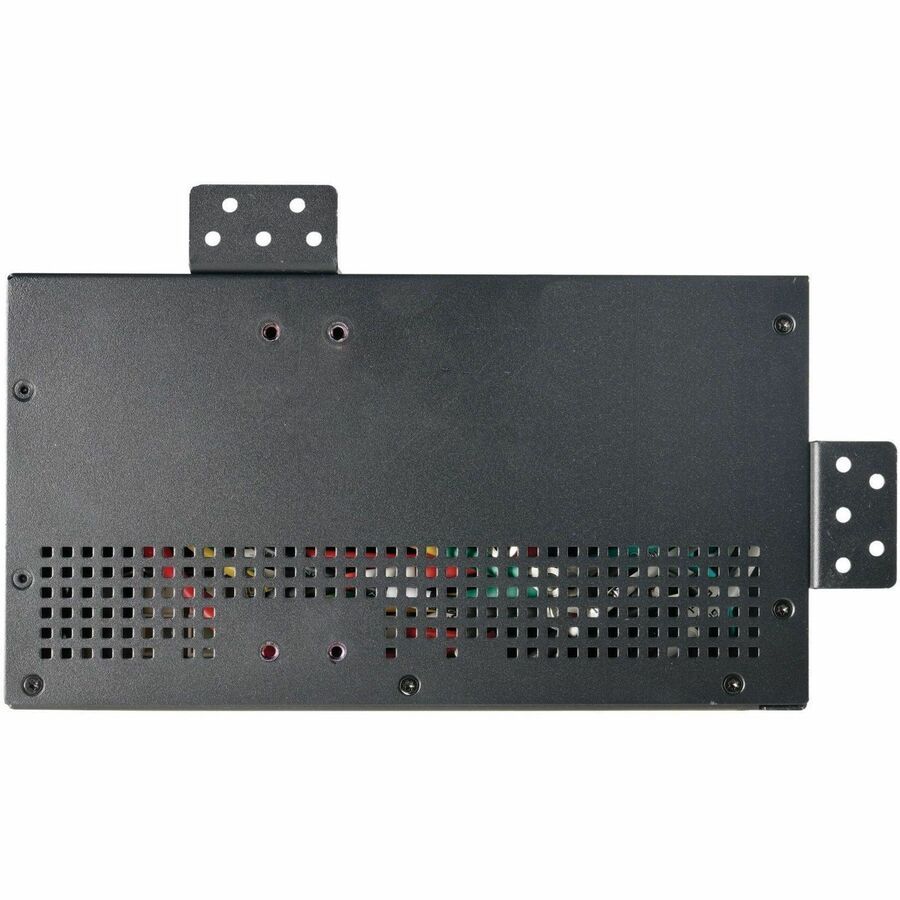

Eaton MBP6K208G2 Bypass Switch

Part #: 1-2664899

Eaton MBP6K208G2 Bypass Switch

Part #: 1-2664899 MFG Part #: MBP6K208G2 UPC #: 786689876050
$886.00 $580.56
Save $305.44
SPECIAL ORDER

0 Available

(as of Jul 3, 2026 2:32 AM) Refresh Inventory
FREE SHIPPING

Free shipping on most items when you spend $100

AUTHORIZED DEALER
AUTHORIZED DEALER
AUTHORIZED DEALER

AUTHORIZED DEALER

Protect your investment ()

About the Eaton MBP6K208G2

Features | Compatible with Select Eaton 3kVA/5kVA/6kVA UPS Systems

The MBP6K208G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.

Versatile Connection and Installation Options

The MBP6K208G2 features hardwired input and output connections, as well as two NEMA L6-20R and two NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.

Technical Specifications of the Eaton MBP6K208G2

General Information


Manufacturer Eaton Corporation
Manufacturer Part Number MBP6K208G2
Manufacturer Website Address http://www.eaton.com
Brand Name Eaton
Product Model MBP6K208G2
Product Name MBP6K208G2 Bypass Switch
Product Type Bypass Switch

Technical Information


Plug / Connector Type HardwiredNEMA L6-30P
Receptacles 2 x NEMA L6-30R1 x Hardwired2 x NEMA L6-20R

Power Description


Load Capacity (VA) 6000 W
Load Capacity (Watt) 6000 W
Output Voltage 220 V AC208 V AC230 V AC240 V AC

Physical Characteristics


Form Factor Rackmount/Tower/Wall-mountable
Rack Height 0U
Height 5.1"
Width 9.4"
Depth 4.9"

Miscellaneous


Package Contents
  • MBP6K208G2 Bypass Switch
  • Input/output UPS Cable Set
  • 2 x Cable Glands
  • Mounting Hardware
Compatibility

Eaton 9PX G2 UPS Systems:

  • 9PX3K3UG2
  • 9PX3K3UNTF5G2
  • 9PX5KG2
  • 9PX5KTF5G2
  • 9PX6K-L
  • 9PX6KG2
  • 9PX6KTF5G2
Certifications & Standards
  • cUL Listed
  • NOM (Mexico)
Country of Origin Philippines
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty


Limited Warranty 3 Year
