Aten 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch

$454.00
$274.53 SAVE $179.47
3 availableas of 08/31/2026

Order within for shipment today

Should arrive by Wed, Sep 30 with free ground shipping

Compliance, certifications and origin

  • RoHS
  • WEEE
  • Origin: Taiwan
Rated excellent by our customers Read our reviews

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Protect this device

Plans are optional and can be left off. Your order is unchanged unless you add one.

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Overview

View user manual

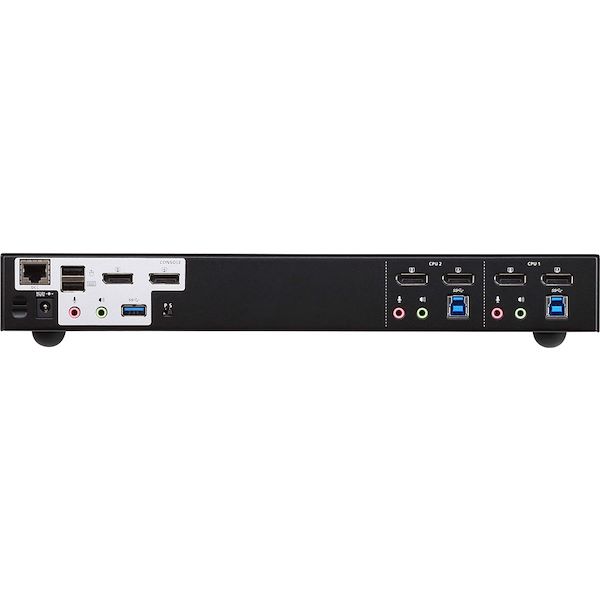

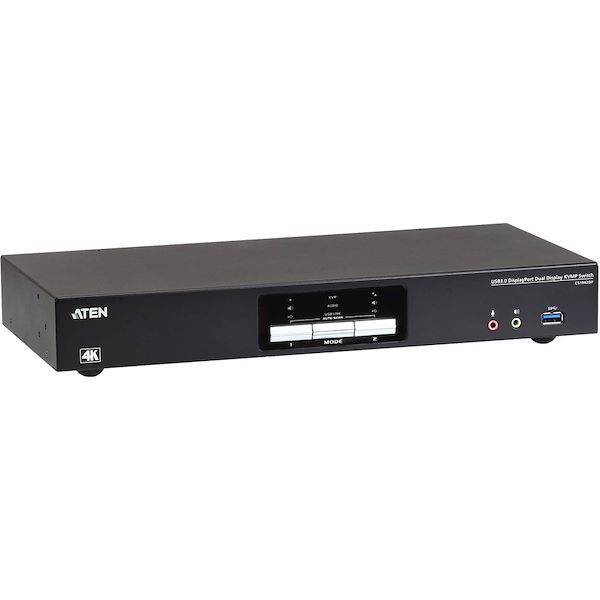

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.

Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.

More from the manufacturer

Technical specifications

General Information

Manufacturer ATEN Technology, Inc
Manufacturer Part Number CS1942DP
Manufacturer Website Address http://www.aten.com/us/en/
Brand Name Aten
Product Model CS1942DP
Product Name 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
Packaged Quantity 1
Product Type KVM Switchbox

Technical Information

Number of Computers Supported 2
Number of Local Users Supported 1

Video

Maximum Video Resolution 4096 x 2160

Interfaces/Ports

Network (RJ-45) Yes
USB Yes
DisplayPort Yes
Number of Network (RJ-45) Ports 1
Number of USB Ports 6
Number of DisplayPorts 6

Power Description

Input Voltage 12 V DC
Input Voltage Range 12V DC

Physical Characteristics

Form Factor Rack-mountable
Height 1.7"
Width 6.2"
Depth 13.2"
Weight (Approximate) 3.40 lb

Miscellaneous

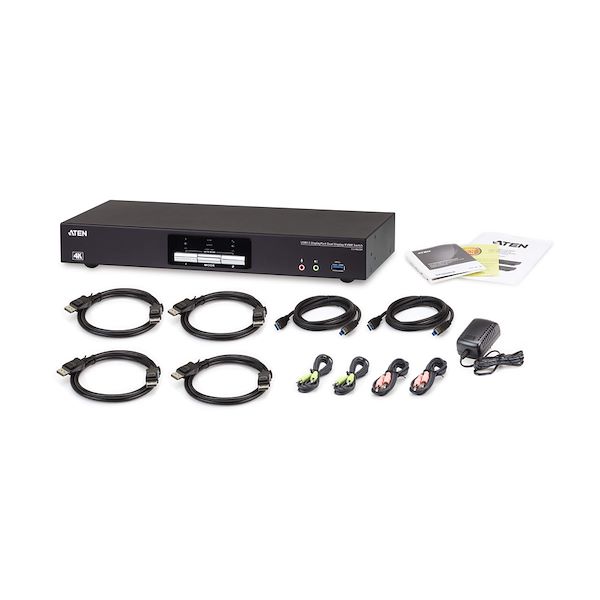

Package Contents
  • 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
  • 4 x DisplayPort 1.2 Cables
  • 2 x USB 3.0 Cables
  • 4 x Audio Cables
  • 1 x Power Adapter
  • 1 x User Instructions
Green Compliant Yes
Country of Origin Taiwan
Environmental Compliance Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty 2 Year
