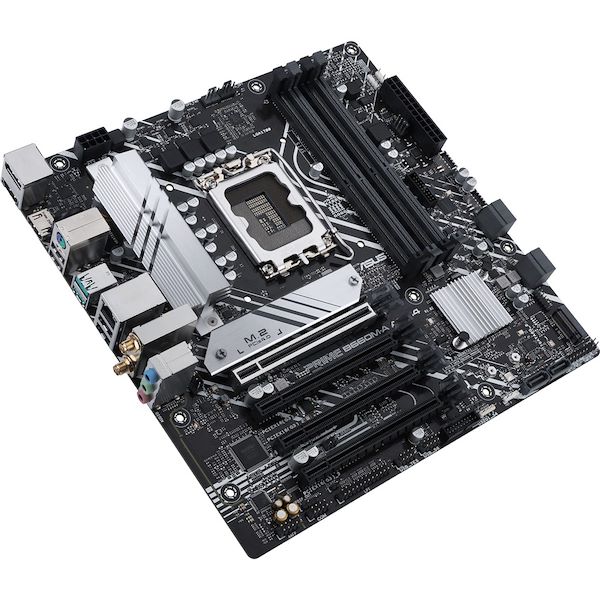

Asus Prime B660M-A AC D4 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

Part #: 1-2193169

Asus Prime B660M-A AC D4 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

Part #: 1-2193169 MFG Part #: PRIME B660M-A AC D4 UPC #: 195553511919
$149.99 $145.75
Save $1.59
SPECIAL ORDER

0 Available

(as of Mar 30, 2026 2:10 AM) Refresh Inventory
FREE SHIPPING

Free shipping on most items when you spend $100

AUTHORIZED DEALER
AUTHORIZED DEALER
AUTHORIZED DEALER

AUTHORIZED DEALER

Protect your investment ()

About the Asus Prime B660M-A AC D4

Technical Specifications of the Asus Prime B660M-A AC D4

General Information


Manufacturer ASUS Computer International
Manufacturer Part Number PRIME B660M-A AC D4
Manufacturer Website Address http://usa.asus.com
Brand Name Asus
Product Line Prime
Product Model B660M-A AC D4
Product Name Prime B660M-A AC D4 Desktop Motherboard
Product Type Desktop Motherboard

Processor & Chipset


Chipset Manufacturer Intel
Chipset Model B660
Total Processor Supported 1
Processor Socket Socket LGA-1700
Processor Generation Supported 12th Gen
Processor Supported CoreCeleronPentium Gold

Memory


Number of Memory Slots 4
Memory Form Factor DIMMUDIMM
Maximum Memory 128 GB
Memory Technology DDR4 SDRAM
Memory Speed Supported 3333 MHz4400 MHz3733 MHz3200 MHz2666 MHz4600 MHz2800 MHz4000 MHz4800 MHz2133 MHz4266 MHz2400 MHz3400 MHz3466 MHz3000 MHz3600 MHz2933 MHz5000 MHz5333 MHz
Intel Optane Memory Ready Yes

I/O Controller


Controller Type Serial ATA/600
Intel RST Yes
RAID Supported Yes
RAID Levels 01015

Video


Onboard Video CPU Dependent Video

Audio


Audio Channels 7.1

Network & Communication


Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac

I/O Expansions


Total Number of Expansion Slots 4
Total Number of PCI Express Slots 4
Number of PCI Express x16 Slots 4

Interfaces/Ports


Total Number of USB Ports 6
Number of USB 2.0 Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 2
HDMI Yes
DisplayPort Yes
Number of Network (RJ-45) Ports 1

Onboard Interfaces


Number of SATA Interfaces 6
Number of M.2 Interfaces 2
Total Number of Onboard USB Ports 10
Number of Onboard USB 2.0 Ports 4
Number of Onboard USB 3.2 Ports 6

Physical Characteristics


Form Factor Micro ATX
Width 9.6"
Depth 9.6"

Miscellaneous


Package Contents
  • Prime B660M-A AC D4 Desktop Motherboard
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS Wi-Fi Moving Antennas
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x M.2 SSD screw package
  • 1 x Support DVD
  • 1 x User Guide
Green Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty


Limited Warranty 3 Year
