Altronix

Altronix Access/Power Integration Kit

$2,855.79
$635.88 SAVE $2,219.91
None availableas of 10/18/2026

Ships when available. Free shipping on most items when you spend $100 or more.

Compliance, certifications and origin

  • RoHS
  • Origin: United States
Rated excellent by our customers Read our reviews

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Protect this device

Plans are optional and can be left off. Your order is unchanged unless you add one.

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Overview

View user manual

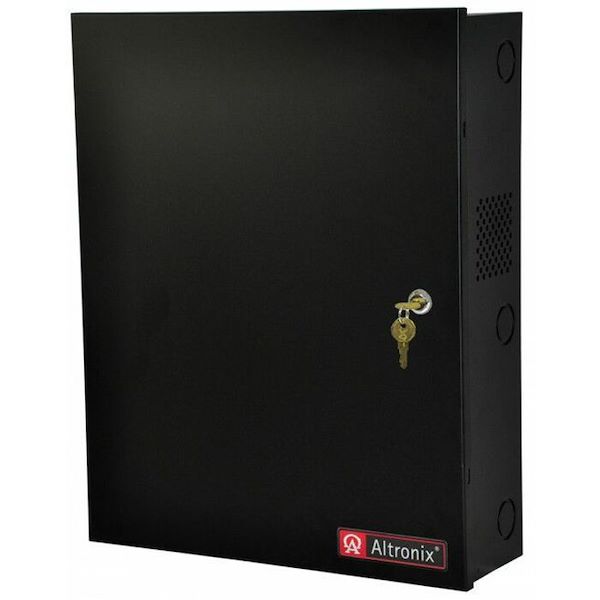

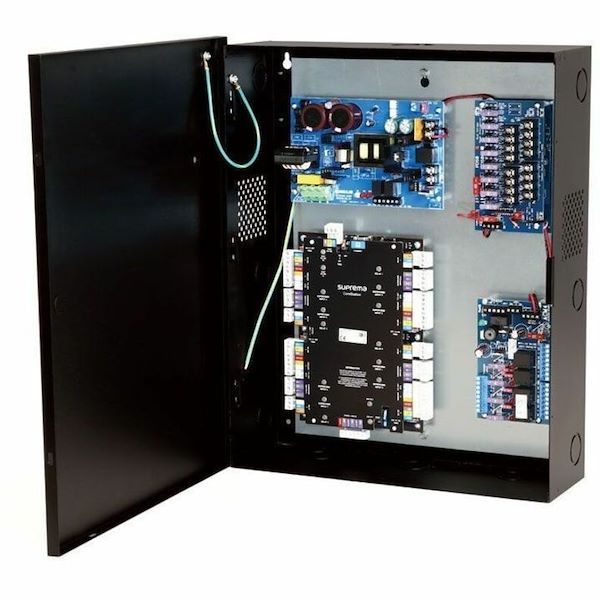

Altronix T1SPK34 kit consists of Trove1 enclosure and TSP1 Altronix & Suprema backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) fuse protected output dual voltage power distribution module and four (4) fuse protected output access control module. This kit also accommodates one (1) Suprema CoreStation module for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Technical specifications

General Information

Manufacturer Altronix Corporation
Manufacturer Part Number T1SPK34
Manufacturer Website Address http://www.altronix.com
Brand Name Altronix
Product Name Access/Power Integration Kit
Product Type Access/Power Integration Kit

Physical Characteristics

Dimensions

Dimensions: 14.5"Wx18"Hx4.62"D(368.3 mm W x 457.2 mm H x 118 mm D)

Weight (Approximate)

Product Weight:15.5 Lbs.(7 kg).

Technical Information

Recommended Usage DoorWall Mount Enclosure

Miscellaneous

Package Contents
  • 1 x Dual Input Power Distribution Module, 8 Fused Outputs
  • 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
  • 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, Board
  • 1 x Access Power Controller, 4 Fused Relay Outputs, FAI, Board
  • 1 x Trove1 Backplane for Altronix/Suprema
  • 1 x Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
Country of Origin United States
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty Lifetime

Battery Information

Number of Batteries Supported 2

Environmental Conditions

Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 120.2°F (49°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 158°F (70°C)
